Black hard drawn wire for manufacturing and construction

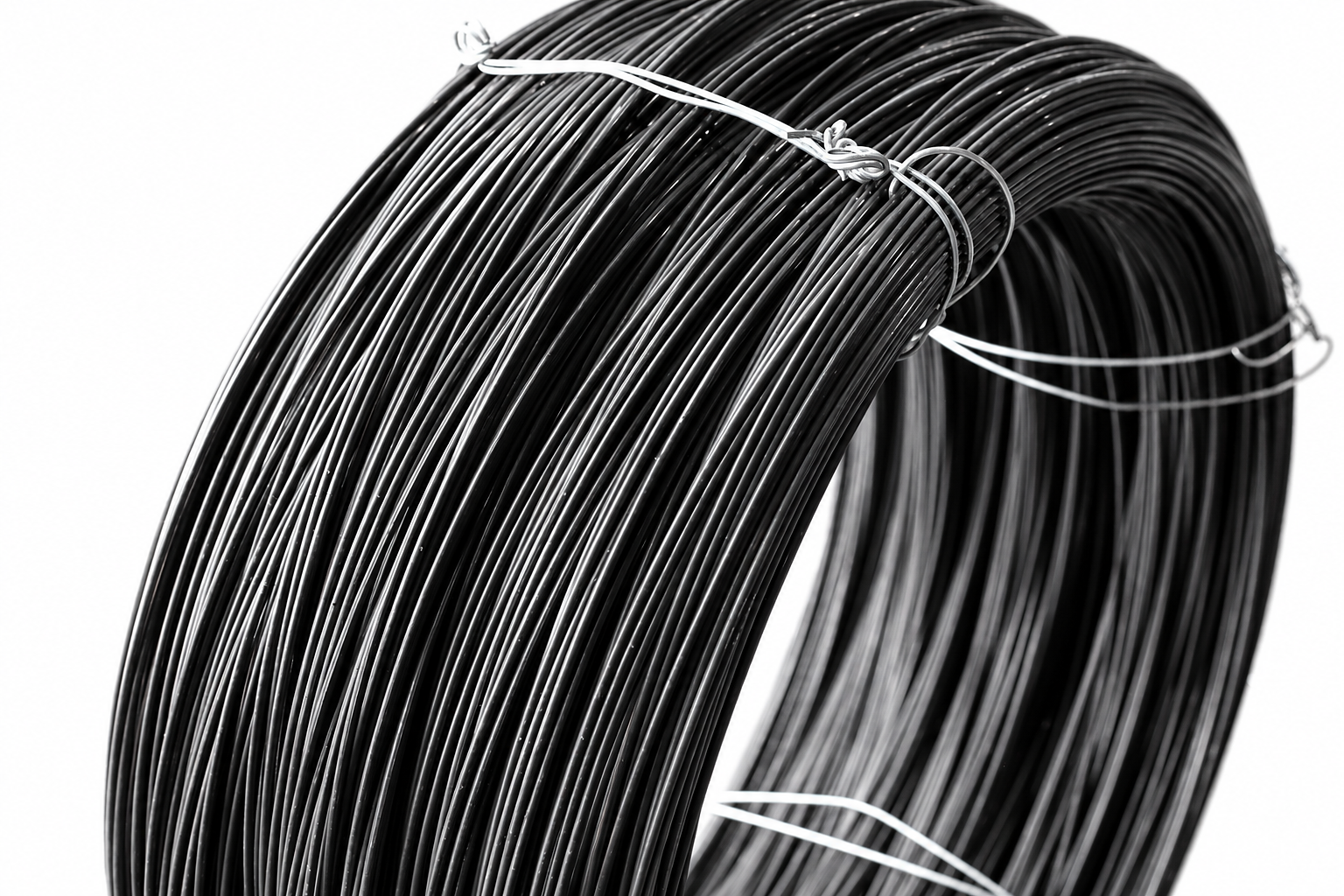

Black hard drawn wire is a stiff, strong wire for manufacturing, construction, and draw wire. Diameters run from 1.6 mm to 8 mm, including a custom diameter. From 1.6 mm to 4 mm, coils run from 2 kg to 400 kg. Over 4 mm, coils run from 25 kg to 400 kg. Straight and cut uses the same packing as straight and cut wire. It is not the same as black annealed wire, which is softer.
Wire guide on hard drawn, annealed, and galvanized wire, and what each is for.
Specifications
- Diameters: 1.6 mm to 8 mm, including 2.8 mm and a custom diameter
- Coils: 2 kg to 400 kg from 1.6 mm to 4 mm, and 25 kg to 400 kg over 4 mm

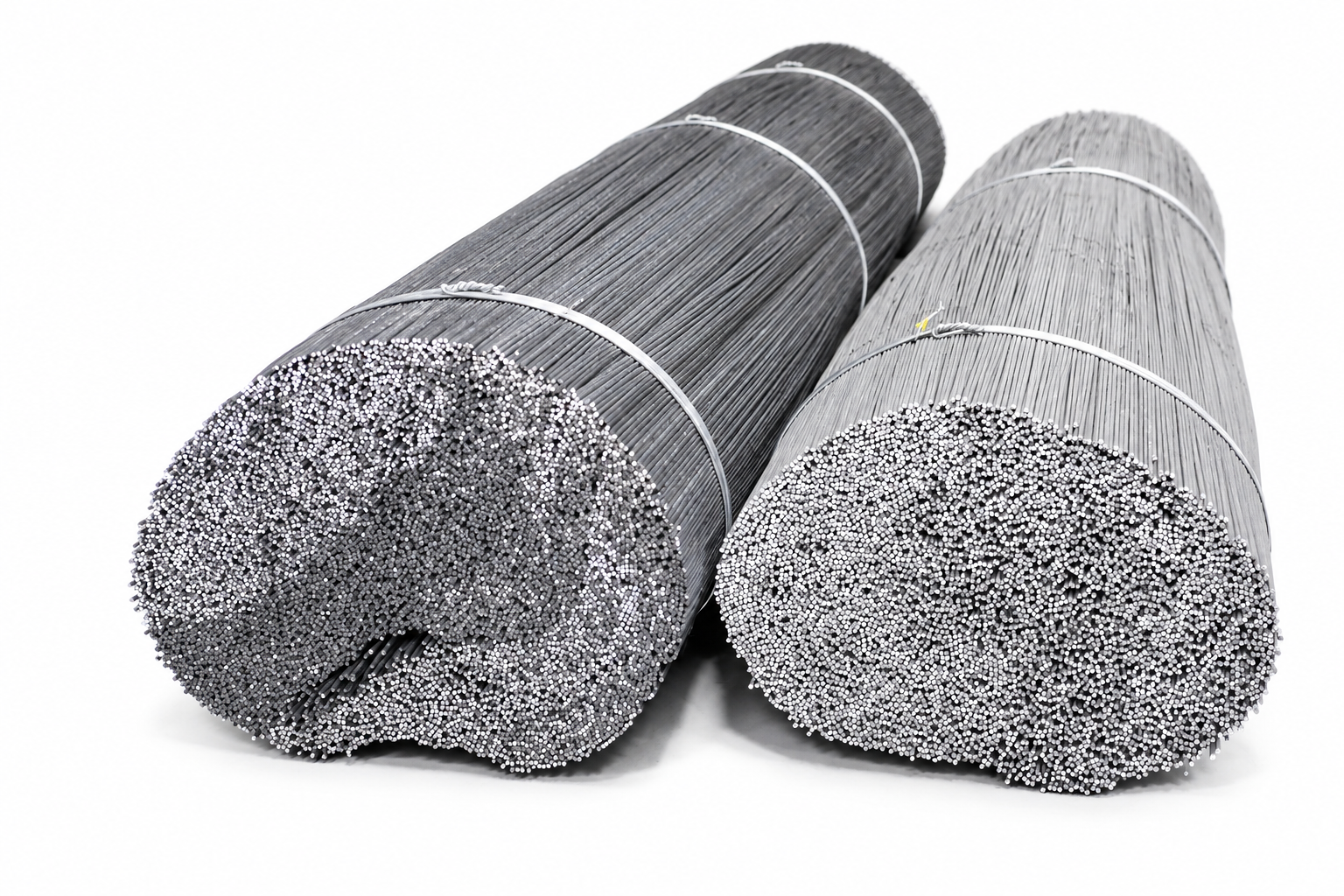

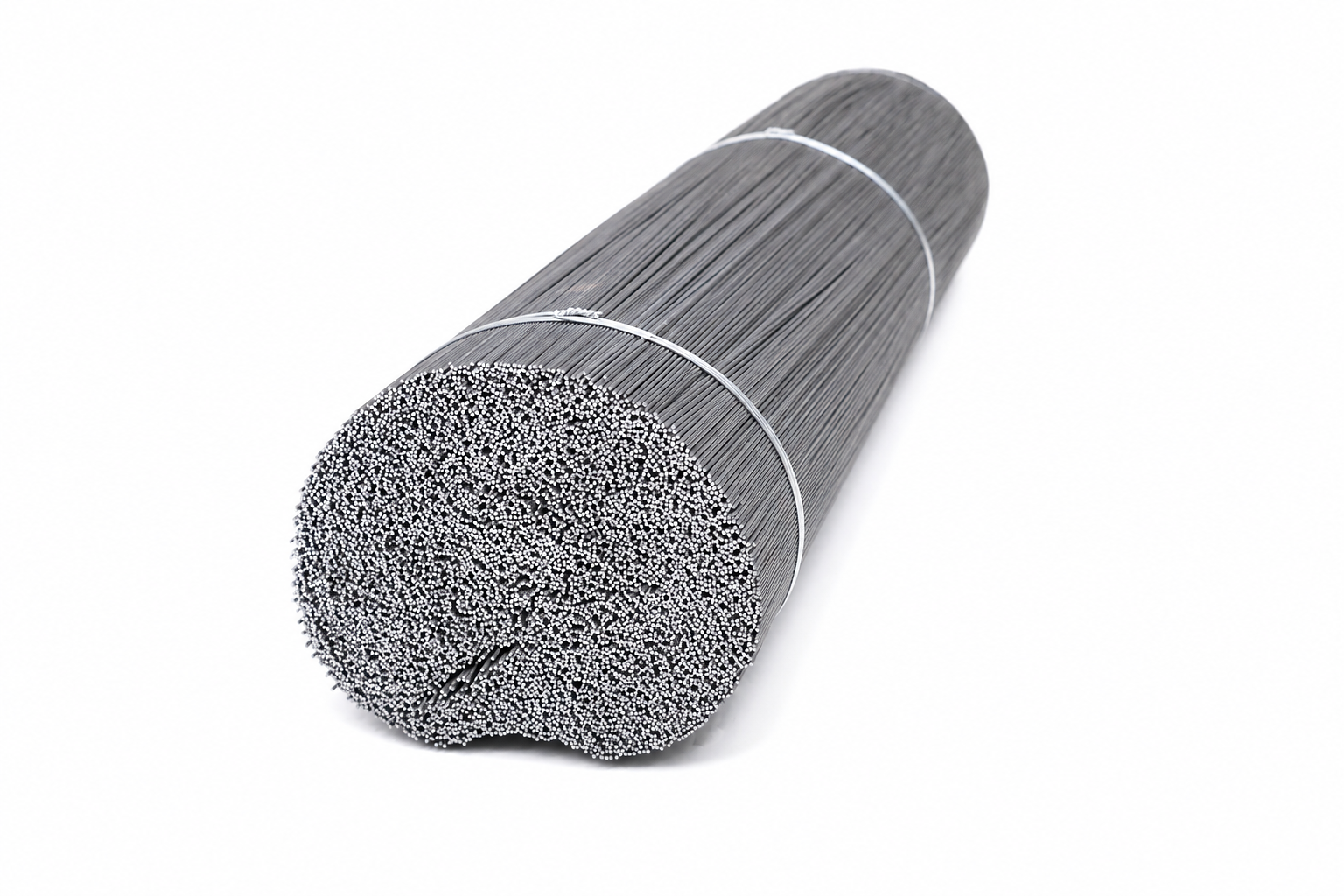

- Straight and cut: 500 mm to 12,000 mm, with the same packing as straight and cut wire
- Carbon: low carbon 1006, 1008, or 1010, or high carbon 1020 to 1060. Usual grade is 1006
Frequently asked questions
- What diameters do you supply?
- We supply from 1.6 mm to 8 mm, including a custom diameter. Tell us the diameter, whether you need coil or straight and cut, and the quantity.
- Do you supply coil or cut lengths?
- Both. From 1.6 mm to 4 mm, coils run from 2 kg to 400 kg. Over 4 mm, coils run from 25 kg to 400 kg. Straight and cut runs from 500 mm to 12,000 mm.
- How is this different from black annealed wire?
- Hard drawn is stiffer and used where you need strength. Annealed is softer and more flexible. Request a quote for the one that matches the job.
- What is draw wire?
- Draw wire is used to pull electrical cable through empty conduit. You push the wire through, fasten the cables to the end, and pull the cables back through. The draw wire comes out with that pull. It does not stay in the conduit. Black hard drawn wire is stiff enough to push through. A usual size is 1.6 mm in a 2 kg or 5 kg coil.
